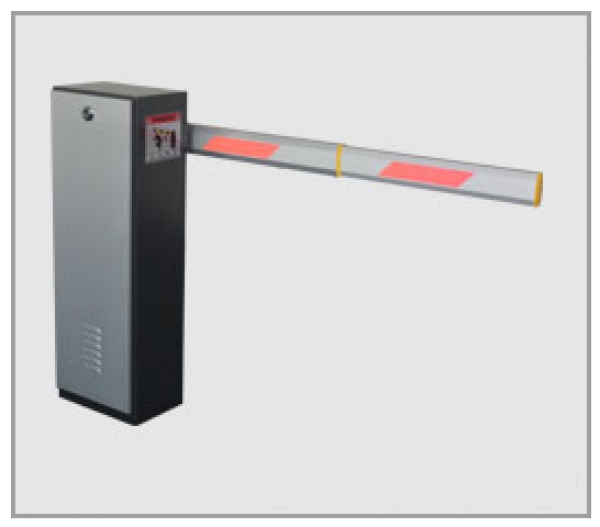

Palang Parkir Portal Otomatis

Palang Parkir Portal Otomatis, Parkir Toll, Parkiran Bandara atau barrier gate ini sering kita jumpai di Mall, Perumahan Elite, Perkantoran, Hotel dan lainnya untuk membatasi access keluar masuk ke suatu area. Palang Parkir ini memiliki spesifikasi teknis seperti dibawah ini. Aplikasi lebih lengkap dari berupa Manless Parking System atau Parking System berbasis RFID untuk residensial. Juga tersedia software parking system yang lebih ekonomis

Features:
Integrative machine core, all parts is made by mold, so all parts can be more accurate and so the barrier gate could be much more stable.
Left and Right install can be amendable, customer can amend install by himself.
Accurate link mechanism, link mechanism can be release arm’ s shake and motor load, so the barrier gate can move more stable and barrier gates’ s working life can be more longer.
70W turbine worm tansmition declaration induction motor: Drive Steady, Nose lower, Sricture Compact, can realise self-locking.

Parameters:
Maximum Straight Boom Lenght:
1, 5seconds type: 3 m
3 seconds type : 4 m
6 seconds type: 6 m
Opening and Closing Times: 1, 5s/ 3s/ 6s
Voltage: 220/ 110V + -10%
Frequency: 60Hz/ 50Hz
Motor Power Consumtion: 100W
Working Temperature: -40 – + 85® c
Housing Dimension: 330( width) x 232( depth) x 972( height) mm
Weight not include barrier boom: 38Kg
Drive: Torque motor
Maximum remote control distance: 30m
Sample Project:
